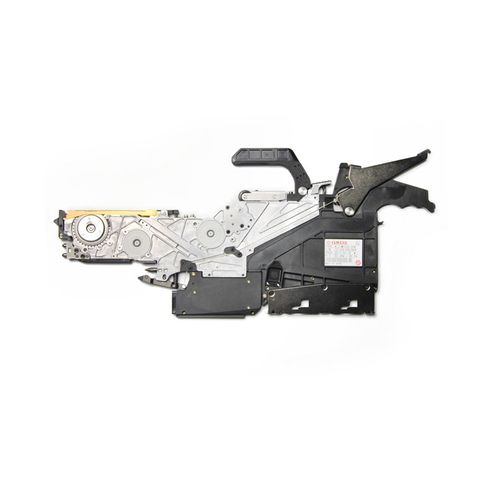

ZS 8mm Feeder


    ¥ 0.00 0.0 CNY ¥ 0.00

    ¥ 0.00

    This combination does not exist.

    Inquiry Now    >                                                                                                                                              1.Quality and package:Each part is checked and tested strictly by our professional QC, make sure each product is in good quality and working condition. Meanwhile each package would be well packed and protected by the professional team who with more than 5 years experience, so that it won’t be damaged during transport.
    2.Payment Term:T/T, Paypal, Western Union...
    3.Lead time: 2-4 Days


    Function and Feature

    Superb operability

    Tape setting mechanism designed for easy operability

    Super-easy to set since it easily pulls out from the feed position even with feeders on both sides.

    Auto loading function comes in a light-weight compact size and reduces workload of an operator.

    Two reels can be set anytime regardless of part feed timing.


    SS/ZS/ZSR feeder joint interface

    Supports YS/YSM/YRM series mounter with tape-cutter.
    Supports IT options, and can provide part insertion error preventer and preset display.
    Know About YAMAHA machines


    Yamaha feeder   KW1-M1300-00X   CL8*2mm(0402)

    Yamaha feeder   KW1-M1400-00X   CL8*2mm(0402)

    Yamaha feeder   KW1-M1500-030   CL8*2mm(0201)

    Yamaha feeder   KW1-M1200-00X   CL8*4mm

    Yamaha feeder   KW1-M1100-000   CL8*4mm(NEW)

    Yamaha feeder   KW1-M2200-300   CL12mm

    Yamaha feeder   KW1-M3200-10X   CL16mm

    Yamaha feeder   KW1-M4500-015   CL24mm

    Yamaha feeder   KW1-M5500-010   CL32mm

    Yamaha feeder   KW1-M6500-000   CL44mm

    Yamaha feeder   KW1-M7500-000   CL56mm

    Yamaha feeder   KW1-M8500-000  CL72mm

    Yamaha feeder   KW1-M9500-000  CL88mm

    YAMAHA feeder FS2 8*2mm  KJK-M1300-011

    YAMAHA feeder FS2 8*4mm   KJK-M1500-013

    YAMAHA feeder  FT 8*2mm   KJK-M1100-011

    YAMAHA feeder  FT 8*2mm     KJW-M1100-000

    YAMAHA feeder  FT 8*4mm     KJW-M1200-020

    YAMAHA feeder  FS 8*4mm   KJW-M1500-010

    YAMAHA feeder  SS 8MM   KHJ-MC100-000 KHJ-MC100-002

    YAMAHA feeder  SS 12MM 16MM  KHJ-MC300-000 KHJ-MC300-002

    YAMAHA feeder  SS 24MM  KHJ-MC400-000  KHJ-MC400-002

    YAMAHA feeder  SS 32MM  KHJ-MC500-000  KHJ-MC500-002

    YAMAHA feeder  SS 44MM  KHJ-MC600-000  KHJ-MC600-002

    YAMAHA feeder  SS 56MM  KHJ-MC700-000  KHJ-MC700-002

    YAMAHA feeder  SS 72MM  KHJ-MC800-000  KHJ-MC800-002

    YAMAHA ZS Feeder 8mm  KLJ-MC100-000

    YAMAHA ZS Feeder 12mm  KLJ-MC200-000

    YAMAHA ZS Feeder 16mm  KLJ-MC300-000

    YAMAHA ZS Feeder 24mm  KLJ-MC400-000

    YAMAHA ZS Feeder 32mm  KLJ-MC500-000

    YAMAHA ZS Feeder 44mm  KLJ-MC600-000

    YAMAHA ZS Feeder 56mm  KLJ-MC700-000

    YAMAHA ZS Feeder 72mm  KLJ-MC800-000

    YAMAHA ZS Feeder 88mm  KLJ-MC900-000


    Auto Loading Feeder
    External dimension (excluding projections)L 549 × W 11.5 × H 278mm
    WeightApprox. 1.50kg
    Compatible tapeWidth 8mm, Maximum thickness 1mm
    * There are restrictions. Please contact us for more details.
    Material Paper / (Emboss * Under development)
    * Pressure Sensitive Adhesive Cover Tape (PSA) can not correspond.
    Applicable reel specificationsFeed pitch setting 2mm / 4mm
    Reel width 14.4mm or less, φ382mm or less
    When using preset holder, Reel width 13.6mm or less, φ178mm or less.
    8mm-converted installation occupied width12mm pitch
    Loadable minimum tape length400mm or more
    Applicable components0603 to 3216mm
    Feeder type4 types 2S (0603/1005) / M (1608) / L (2012) / LL (3216)
    Tape loading timeApprox. 5 sec
    * From tape feed start to pickup preparation completion.
    Compatible mounterYS / YSM / YRM series with tape cutter
    Specifications and appearance are subject to change without prior notice.
