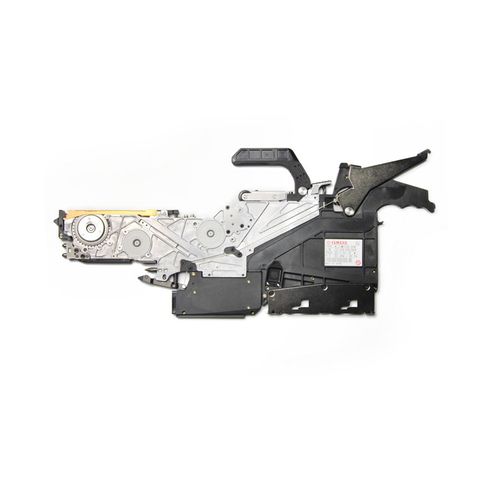

ZS 8mm Feeder

KLJ-MC100-00

Inquiry Now > YAMAHA ZS 8mm Electronics Feeder KLJ-MC100-00 , original new , and original used feeder on stock .

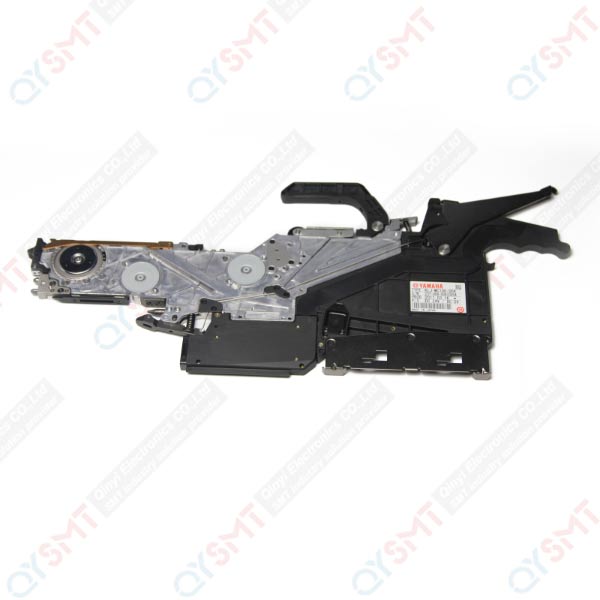

YAMAHA ZS 8MM FEEDER KLJ-MC100-000

Function and Feature

Automatic supply of tape components

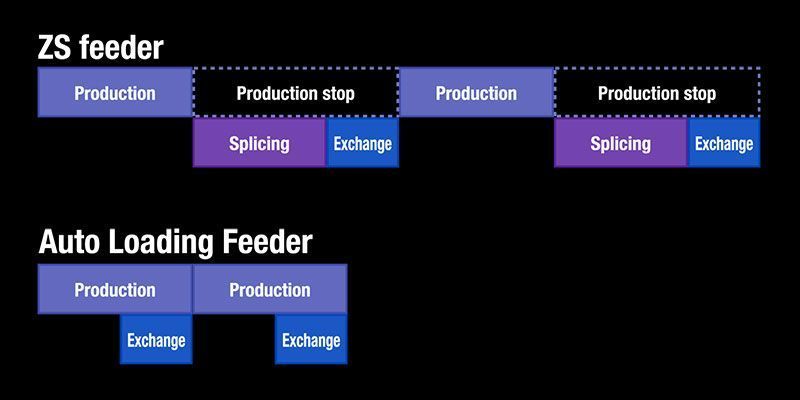

Labor-saver! Reduce tape setting time. No need to recover top tape. Not needed to splice.

Improved machine operating time

Superb operability

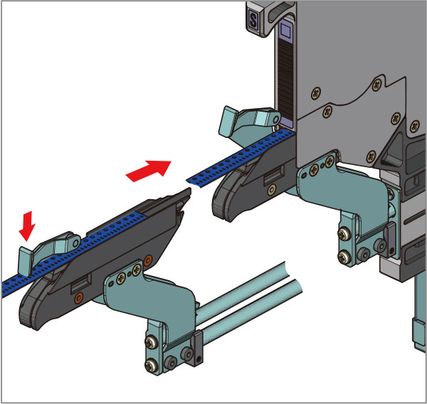

Tape setting mechanism designed for easy operability

Super-easy to set since it easily pulls out from the feed position even with feeders on both sides.

Auto loading function comes in a light-weight compact size and reduces workload of an operator.

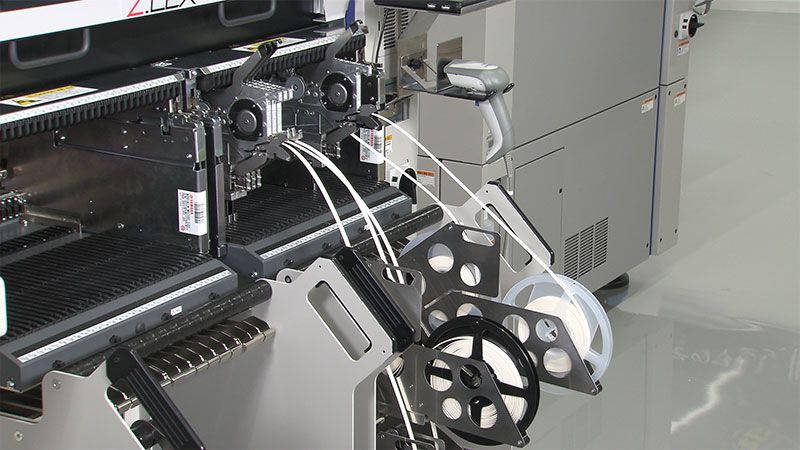

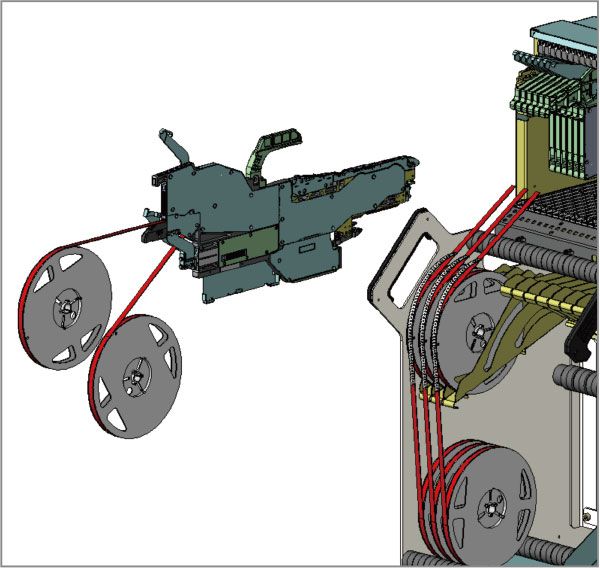

Two reels can be set anytime regardless of part feed timing.

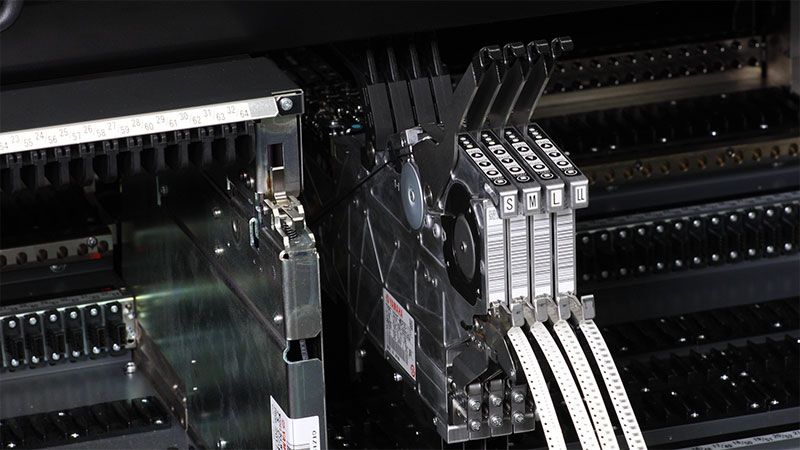

SS/ZS/ZSR feeder joint interface

Supports YS/YSM/YRM series mounter with tape-cutter.

Supports IT options, and can provide part insertion error preventer and preset display.

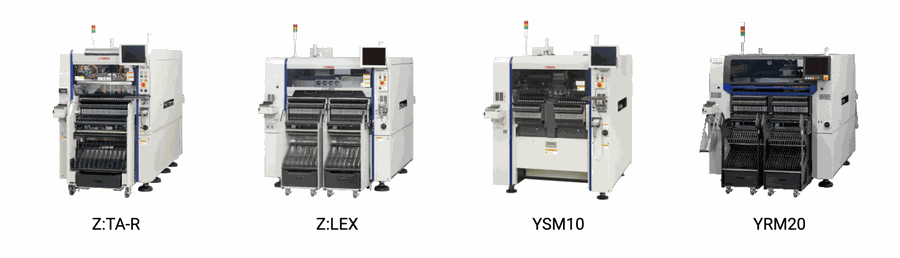

Know About YAMAHA machines

OTHES YAMAHA TAPE FEEDERS LIST

Yamaha feeder KW1-M1300-00X CL8*2mm(0402)

Yamaha feeder KW1-M1400-00X CL8*2mm(0402)

Yamaha feeder KW1-M1500-030 CL8*2mm(0201)

Yamaha feeder KW1-M1200-00X CL8*4mm

Yamaha feeder KW1-M1100-000 CL8*4mm(NEW)

Yamaha feeder KW1-M2200-300 CL12mm

Yamaha feeder KW1-M3200-10X CL16mm

Yamaha feeder KW1-M4500-015 CL24mm

Yamaha feeder KW1-M5500-010 CL32mm

Yamaha feeder KW1-M6500-000 CL44mm

Yamaha feeder KW1-M7500-000 CL56mm

Yamaha feeder KW1-M8500-000 CL72mm

Yamaha feeder KW1-M9500-000 CL88mm

YAMAHA feeder FS2 8*2mm KJK-M1300-011

YAMAHA feeder FS2 8*4mm KJK-M1500-013

YAMAHA feeder FT 8*2mm KJK-M1100-011

YAMAHA feeder FT 8*2mm KJW-M1100-000

YAMAHA feeder FT 8*4mm KJW-M1200-020

YAMAHA feeder FS 8*4mm KJW-M1500-010

YAMAHA feeder SS 8MM KHJ-MC100-000 KHJ-MC100-002

YAMAHA feeder SS 12MM 16MM KHJ-MC300-000 KHJ-MC300-002

YAMAHA feeder SS 24MM KHJ-MC400-000 KHJ-MC400-002

YAMAHA feeder SS 32MM KHJ-MC500-000 KHJ-MC500-002

YAMAHA feeder SS 44MM KHJ-MC600-000 KHJ-MC600-002

YAMAHA feeder SS 56MM KHJ-MC700-000 KHJ-MC700-002

YAMAHA feeder SS 72MM KHJ-MC800-000 KHJ-MC800-002

YAMAHA ZS Feeder 8mm KLJ-MC100-000

YAMAHA ZS Feeder 12mm KLJ-MC200-000

YAMAHA ZS Feeder 16mm KLJ-MC300-000

YAMAHA ZS Feeder 24mm KLJ-MC400-000

YAMAHA ZS Feeder 32mm KLJ-MC500-000

YAMAHA ZS Feeder 44mm KLJ-MC600-000

YAMAHA ZS Feeder 56mm KLJ-MC700-000

YAMAHA ZS Feeder 72mm KLJ-MC800-000

YAMAHA ZS Feeder 88mm KLJ-MC900-000

Specifications

	Auto Loading Feeder

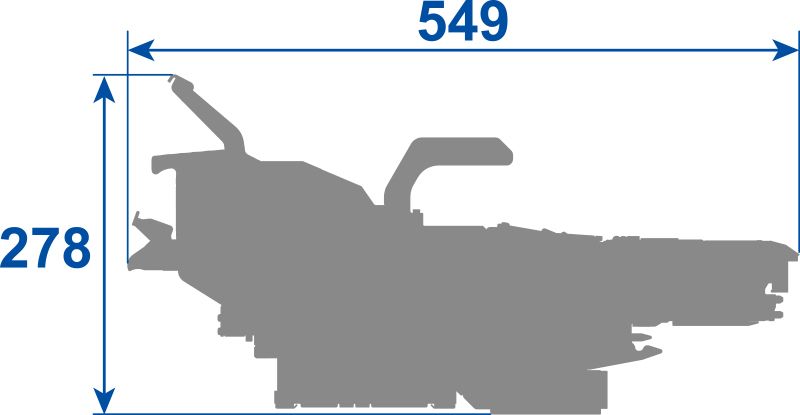

External dimension (excluding projections)	L 549 × W 11.5 × H 278mm
Weight	Approx. 1.50kg
Compatible tape	Width 8mm, Maximum thickness 1mm * There are restrictions. Please contact us for more details.
Compatible tape	Material Paper / (Emboss * Under development) * Pressure Sensitive Adhesive Cover Tape (PSA) can not correspond.
Applicable reel specifications	Feed pitch setting 2mm / 4mm Reel width 14.4mm or less, φ382mm or less
Applicable reel specifications	When using preset holder, Reel width 13.6mm or less, φ178mm or less.
8mm-converted installation occupied width	12mm pitch
Loadable minimum tape length	400mm or more
Applicable components	0603 to 3216mm
Feeder type	4 types 2S (0603/1005) / M (1608) / L (2012) / LL (3216)
Tape loading time	Approx. 5 sec * From tape feed start to pickup preparation completion.
Compatible mounter	YS / YSM / YRM series with tape cutter

Specifications and appearance are subject to change without prior notice.
