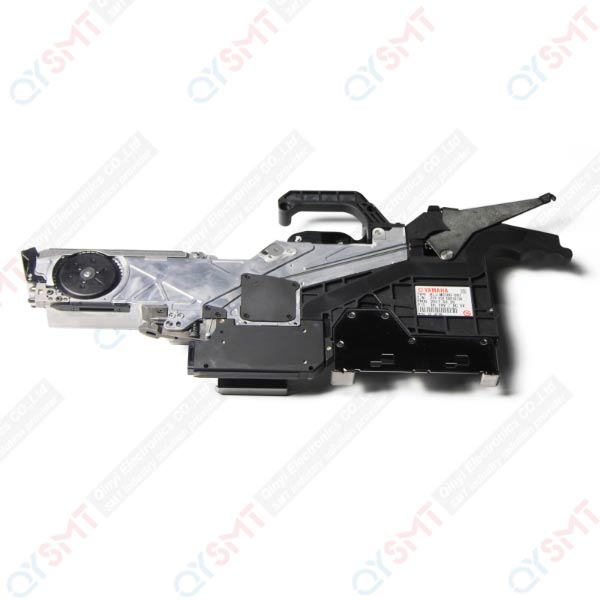

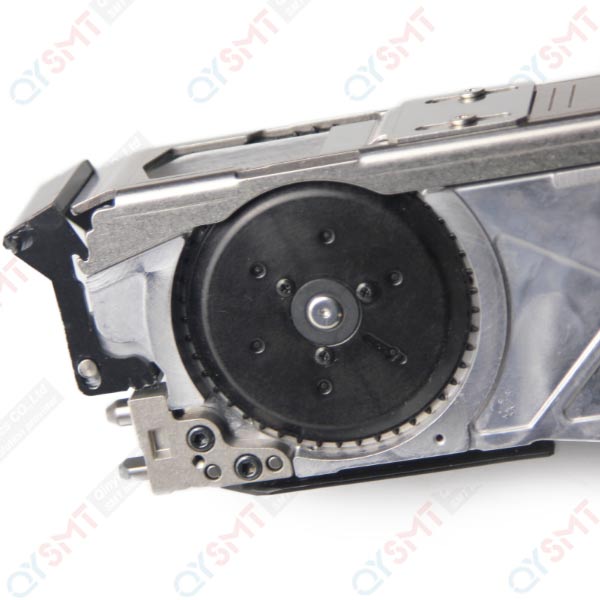

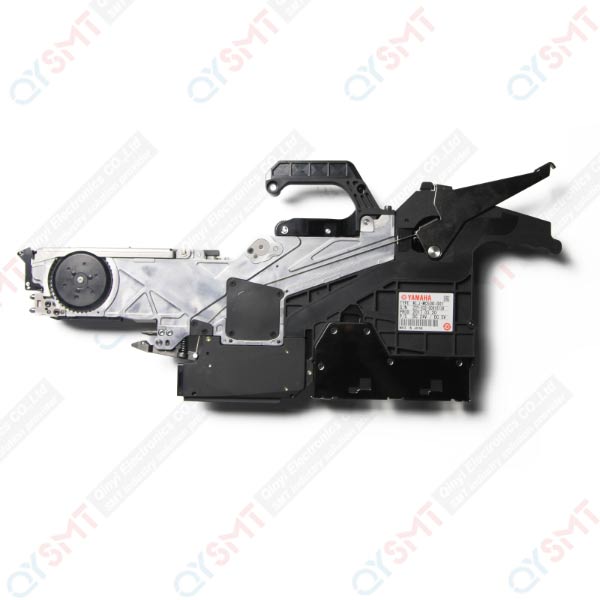

ZS 32mm feeder

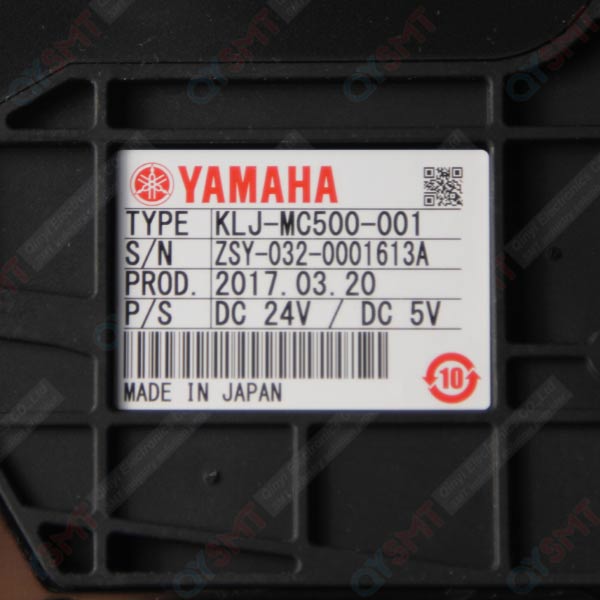

KLJ-MC500-000
Inquiry Now > All brand SMT feeders on stock . SMT Spare parts , smt nozzles .YAMAHA ZS feeder ,SS feeder ,YS feeder , 8mm ,12/16mm 24mm feeders
SS/ZS/ZSR feeder joint interface
Supports YS/YSM/YRM series mounter with tape-cutter.
Supports IT options, and can provide part insertion error preventer and preset display.

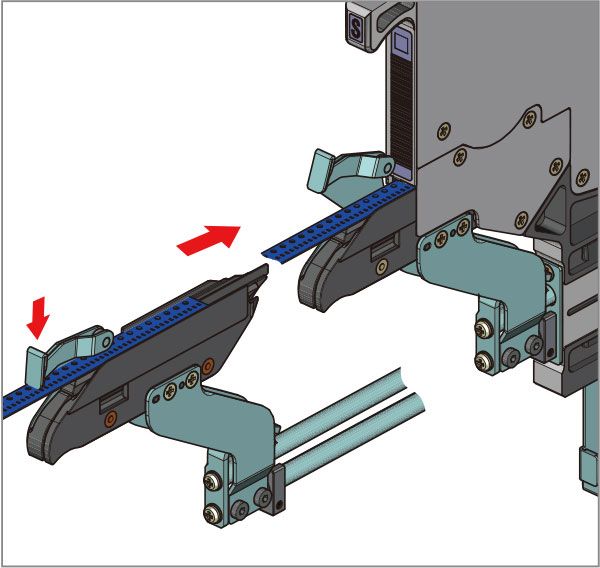

Tape setting mechanism designed for easy operability

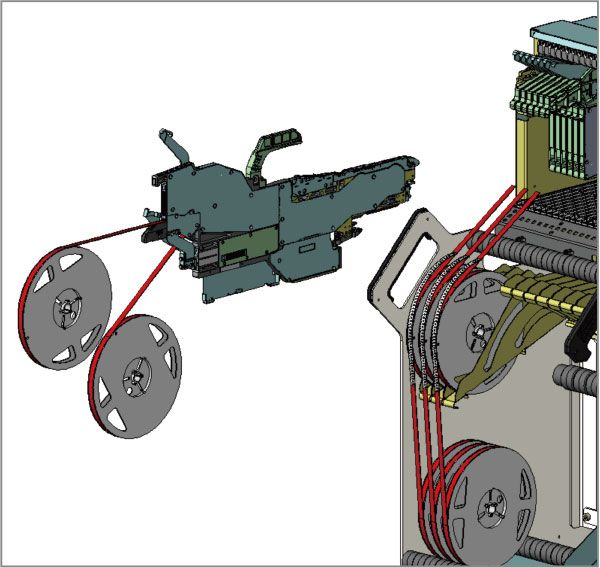

Super-easy to set since it easily Super-easy to set since it easily pulls out from the feed position even with feeders on both sides. it easily pulls out from the fee
Specifications
| Auto Loading Feeder | |
|---|---|

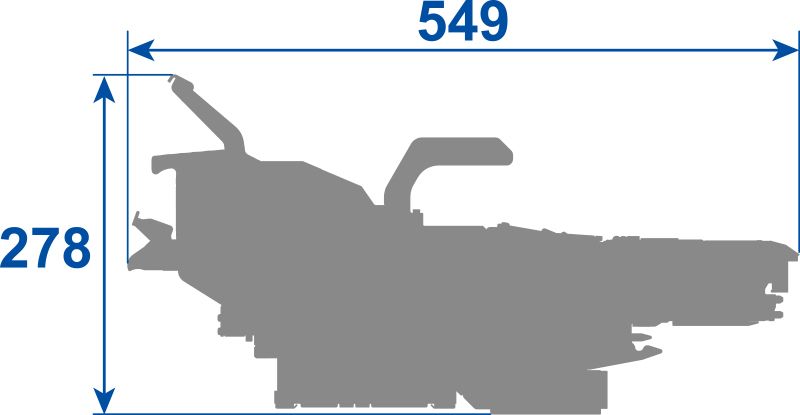

| External dimension (excluding projections) | L 549 × W 11.5 × H 278mm |
| Weight | Approx. 1.50kg |
| Compatible tape | Width 8mm, Maximum thickness 1mm * There are restrictions. Please contact us for more details. |
| Material Paper / (Emboss * Under development) * Pressure Sensitive Adhesive Cover Tape (PSA) can not correspond. | |
| Applicable reel specifications | Feed pitch setting 2mm / 4mm Reel width 14.4mm or less, φ382mm or less |
| When using preset holder, Reel width 13.6mm or less, φ178mm or less. | |
| 8mm-converted installation occupied width | 12mm pitch |
| Loadable minimum tape length | 400mm or more |
| Applicable components | 0603 to 3216mm |
| Feeder type | 4 types 2S (0603/1005) / M (1608) / L (2012) / LL (3216) |
| Tape loading time | Approx. 5 sec * From tape feed start to pickup preparation completion. |

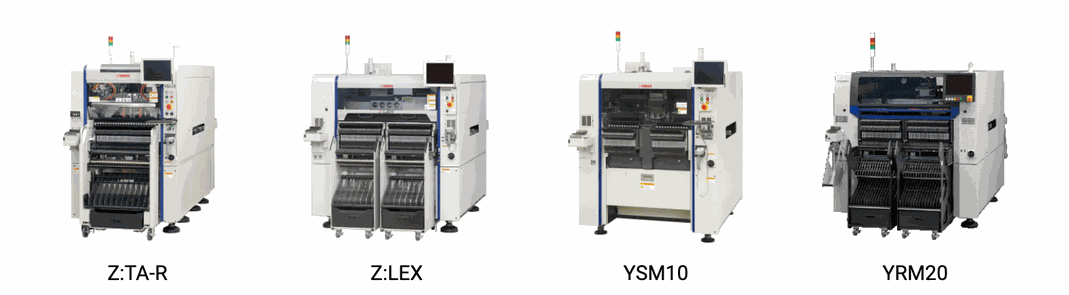

| Compatible mounter | YS / YSM / YRM series with tape cutter |
- Specifications and appearance are subject to change without prior notice.
