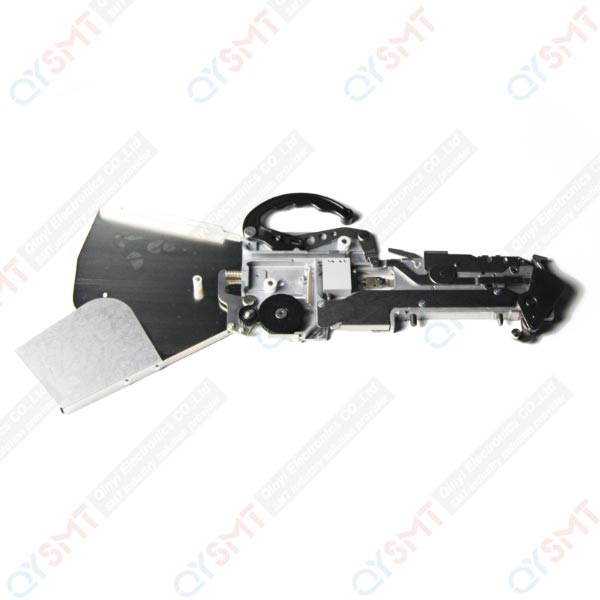

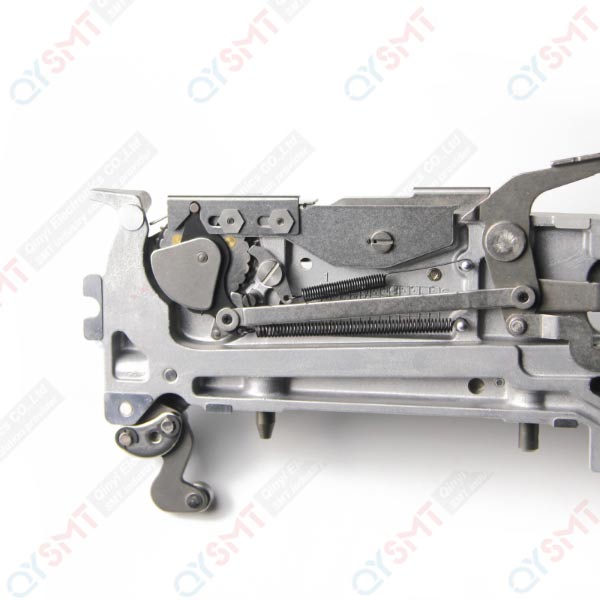

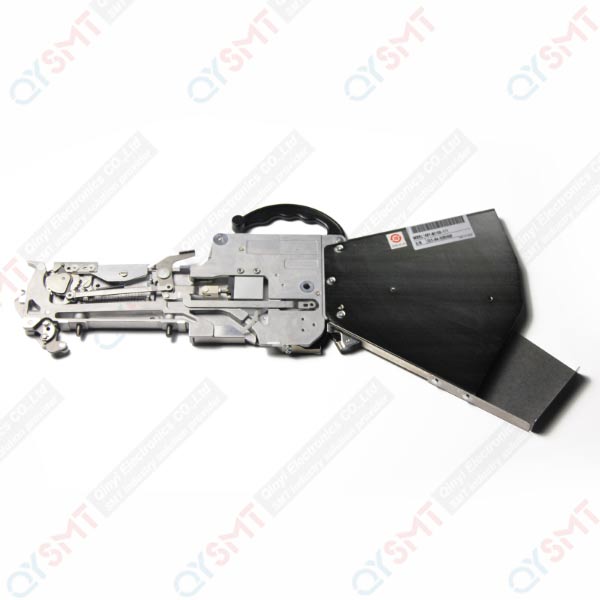

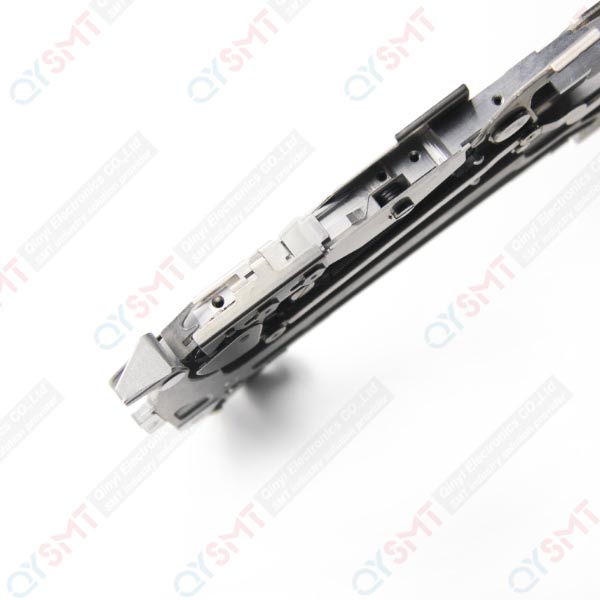

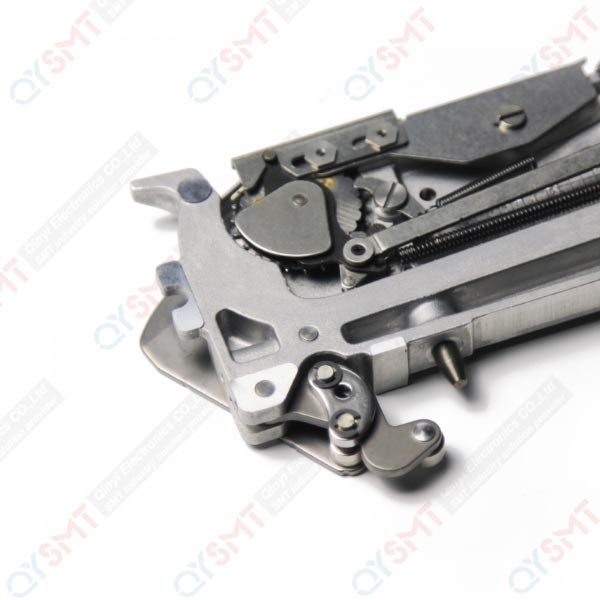

CL 8X4mm feeder

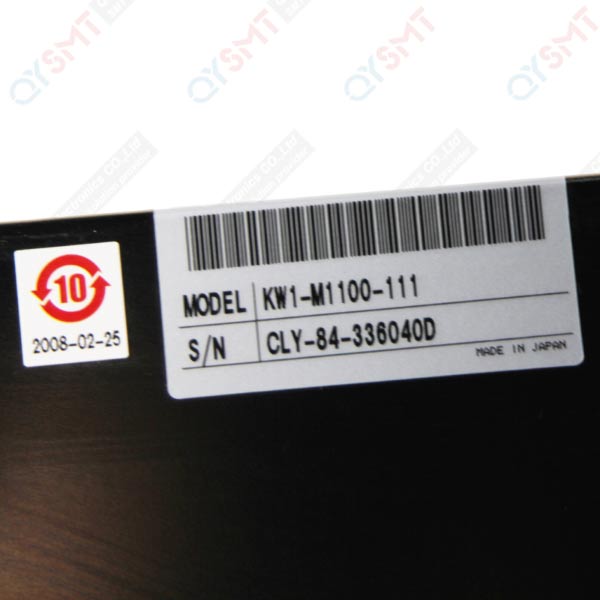

KW1-M1100-10X

    ¥ 0.00 0.0 CNY ¥ 0.00

    ¥ 0.00

    This combination does not exist.


    Inquiry Now    >                                                                                                                                              1.Quality and package:Each part is checked and tested strictly by our professional QC, make sure each product is in good quality and working condition. Meanwhile each package would be well packed and protected by the professional team who with more than 5 years experience, so that it won’t be damaged during transport.
    2.Payment Term:T/T, Paypal, Western Union...
    3.Lead time: 2-4 Days

    YAMAHA CL Feeder parts list as below

    K87-M111H-20X BACK STOPPER

    K87-M111B-00X BACK STOPPER AXIS

    KW1-M111A-00X SPRING

    K87-M111G-10X PUSH PIN

    K87-M111C-00X PLANE WASHER

    K87-M111P-00X SCREW,FLAT HEAD +

    K87-M111D-00X PUSH PIN

    K87-M112L-10X SPROCKET AXIS ASSY

    KW1-M112A-00X RACKING LEVER ASSY

    K87-M112D-10X COIL SPRING

    KW1-M111E-00X SPRING

    K87-M111F-10X STOPPER PIN

    K87-M1181-00X ROD CONNECT

    K87-M1184-00X CONNECT PIN

    KW1-M1185-00X MULTI CYLINDER

    KW1-M111L-00X BARB CONNECTOR

    K87-M111M-00X GASKET

    KW1-M11B1-00X AIR HOSE

    K87-M11B9-00X CIRCLIP E

    KW1-M11B6-00X BOLT,HEX SOCKET HEAD

    KW1-M114A-00X HAND LEVER ASSY

    KW1-M116K-00X LEVER AXIS

    KW1-M1177-00X MAIN ARM

    K87-M111C-00X PLANE WASHER

    K87-M11BF-00X SCREW,FLAT HEAD +IB

    KW1-M114N-00X GUIDE AXIS

    K87-M111R-00X SCREW,SET

    K87-M111X-00X SCREW,SET

    KW1-M1320-00X SPROCKET ASSY

    KW1-M1540-00X TAPE GUIDE ASSY

    Clarico-3 Columns Style 2

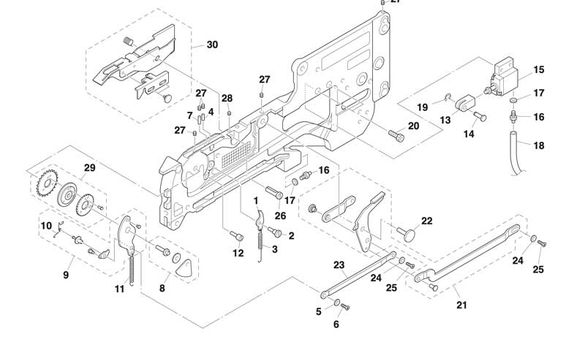

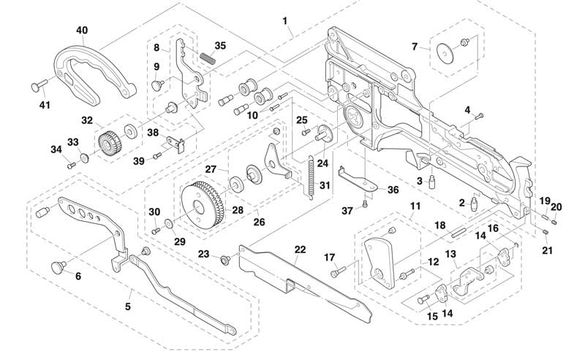

    CL 84 FEEDER DRWAING-1


    Clarico-3 Columns Style 2

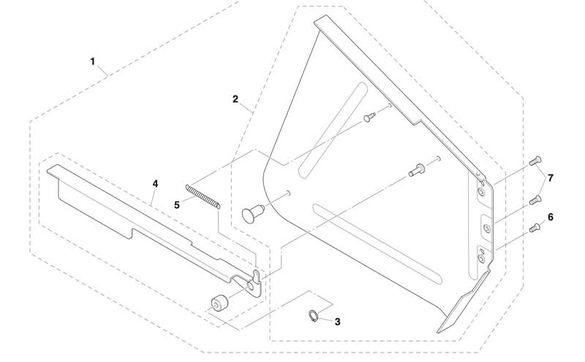

    CL 84 FEEDER DRWAING-2


    Clarico-3 Columns Style 2

    CL 84 FEEDER DRWAING-3
